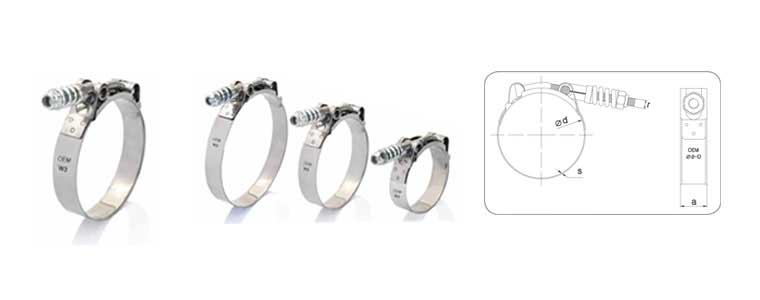

SPRING T-BOLT HOSE CLAMPS - YTB
SPRING T-BOLT HOSE CLAMPS - YTB
IDEAL Spring-Loaded T-Bolt clamps provides constant band tension for medium and high pressure joints. Changes resulting from the pressure in the hose diameter is absorbed and prevents hose extrusions. Through spring reduces the rate of vibration. HYTB model is designed for heavy-duty applications.
- High tensile strength and sealing
- Resistant to temperature changes and corrosion
- Uniform clamping force throughout 360 degrees
- Space and weight saving durable desing with three welding points
- Sizing: 54mm - 224mm(other sizes can be offered)
- 400 and 300 stainless steel series material options(other materials can be offered)
- Quick and easy assembly
It is used in the automotive, marine industry, buildingö machines, agriculturel machines, irrigation systems, Pump and Filters, heavy construction machinery industries as well as the hose industry.
|
SIZE |
IDEAL CODE |
r (mm) |
a (mm) |
s (mm) |
|
| mm | W2 | W3 | |||
| 54*62 | YTB - 218 | YTB - 418 | 1/4 (8.8) |
19 s (mm) |
0,8 |
| 57*65 | YTB - 219 | YTB - 419 | |||
| 60*68 | YTB - 220 | YTB - 420 | |||
| 63*72 | YTB - 221 | YTB - 421 | |||
| 67*75 | YTB - 222 | YTB - 422 | |||
| 70*78 | YTB - 223 | YTB - 423 | |||
| 73*81 | YTB - 224 | YTB - 424 | |||
| 76*84 | YTB - 225 | YTB - 425 | |||
| 78*86 | YTB - 226 | YTB - 426 | |||
| 79*87 | YTB - 227 | YTB - 427 | |||
| 82*91 | YTB - 228 | YTB - 428 | |||
| 86*94 | YTB - 229 | YTB - 429 | |||
| 89*97 | YTB - 230 | YTB - 430 | |||
| 90*98 | YTB - 231 | YTB - 431 | |||
| 92*100 | YTB - 232 | YTB - 432 | |||
| 95*103 | YTB - 233 | YTB - 433 | |||
| 101*110 | YTB - 234 | YTB - 434 | |||
| 103*111 | YTB - 235 | YTB - 435 | |||
| 105*113 | YTB - 236 | YTB - 436 | |||
| 108*116 | YTB - 237 | YTB - 437 | |||
| 114*122 | YTB - 238 | YTB - 438 | |||
| 116*124 | YTB - 239 | YTB - 439 | |||
| 121*129 | YTB - 240 | YTB - 440 | |||
| 127*135 | YTB - 241 | YTB - 441 | |||
| 133*141 | YTB - 242 | YTB - 442 | |||
| 140*148 | YTB - 243 | YTB - 443 | |||
| 146*154 | YTB - 244 | YTB - 444 | |||
| 152*160 | YTB - 245 | YTB - 445 | |||
| 159*167 | YTB - 246 | YTB - 446 | |||
| 165*173 | YTB - 247 | YTB - 447 | |||
| 171*180 | YTB - 248 | YTB - 448 | |||
| 178*186 | YTB - 249 | YTB - 449 | |||
| 184*192 | YTB - 250 | YTB - 450 | |||
| 190*198 | YTB - 251 | YTB - 451 | |||
| 197*205 | YTB - 252 | YTB - 452 | |||
| 203*211 | YTB - 253 | YTB - 453 | |||
| 210*218 | YTB - 254 | YTB - 454 | |||
| 216*224 | YTB - 255 | YTB - 455 | |||
